Samsung OfficeServ 7100 Series



Samsung OfficeServ Systems

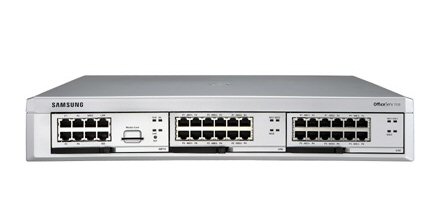

The Samsung Officeserv 7100

 IP Telephony

The 7100 OfficeServ series uses integrated wired / wireless platform to connect phones, PCs, servers, mobile phones, and peripherals together. The 7100 supports all Samsung keysets.



Brouchure


The 7100 has everything you need to take your business to the next level. With cutting edge networking capabilities, you can link a remote location to operate transparently as a single entity. Voice Over Internet Protocol (VoIP) offers state-of-the-art convergence technology that allows you to make voice calls over your existing intranet or the Internet. Features like computer telephone integration (CTI) and automatic call distribution (ACD) give your small business capabilities that were previously reserved for large businesses. Best of all, with the iDCS 100's scalable architecture, you don't need to make a big investment now to be prepared for tomorrow's growth.

Call Whitakers at (866)420-5581 for more information on installing this Samsung business phone system today!



All-in-One IP convergence key system
  • Wired + Wireless, Voice + Data)
  • Router, Firewall, IDS, VPN (MP11)
  • 2 Universal slots within 1 cabinet, up to 32 users
    • - 7 Daughter board within 1 cabinet
Flexible Configuration
  • Multiple configurations available by using new universal board and daughterboard combination
    • - Trunk Boards : 4TRM, 2BRM
    • - Station Boards : 4DLM, 4SLM, 4SWM
Embedded Voice Mail and Media Gateway
  • MP card has embedded support for voice mail and MGI
    • - 2 or 4 port Voice Mail
    • - 1-8 channel media gateway
    • - Controlled by software license
Compatibility and Scalability
  • Provides support for common OfficeServ 7200, 7400 boards and applications
  • SPnet connectivity with officeserv 7200, 7400


Model OfficeServ 7100
Cabinet Mounting 19" Rack-mount or Standalone
Maximum Ports 48
Trunks 24 (Analog) / 48 (Digital) / 32 (IP)
Card Slots 1 MCP + 2 Universal (6 D' board)
Max. # of Analog Sets 24
Max. # of Digital Sets 24
Max. # of IP Phones 16
Main CPU Type MindSpeed M82511G CSP
O/S Linux
IP Standards Linux
Voice Codecs G.711/729A/723.1
Wireless WiFi
Voice Messaging Embedded
Unified Messaging Optional
Dimensions (HxWxD) 75 x 440 x 410 mm
Remarks
  • - Basic configuration : 1 Rack, 3 Slot Multimedia Card
Strengths
  • - Embedded 8ch MGI, 4ch VMS basically on MCP
  • - Enabling embed line Daughter B'd on the 12port Universal Slot
  • - The module cards for OfficeServ 7100 can be reused on the other OfficeServ 7000 series
  • - Integrated router, switch funtions (MP11)
  • - Web-based Admin.
  • - Collaboration Tool (OfficeServ Messenger)
Limitations or Weakness
  • - No support DECT
  • - No support cabinet expandability
